Automatic piston filling machine for high viscous liquid

by Shanghai Joygoal Food Machinery Co., Ltd.


  • Condition:New
  • Type:Filling Machine
  • Machinery Capacity:Other, 3600-4000 bags/hour
  • Applicable Industries:Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
  • Showroom Location:None
  • Application:APPAREL, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Textiles
  • Packaging Type:Pouch, Stand-up Pouch, Bags, spouted pouch
  • Packaging Material:Paper, Plastic
  • Automatic Grade:Automatic
  • Driven Type:Pneumatic
  • Voltage:220V/380V
  • Place of Origin:Shanghai, China
  • Brand Name:JOYGOAL
  • Dimension(L*W*H):3900*2300*2230 MM
  • Weight:1200 KG
  • Warranty:1 Year
  • Key Selling Points:High Productivity
  • Filling Material:Other, Milk, Water, Oil, Juice
  • Filling Accuracy:>99%
  • Machinery Test Report:Not Available
  • Video outgoing-inspection:Provided
  • Warranty of core components:1 Year
  • Core Components:Motor, Other, PLC, Gear, Gearbox, Engine
  • Model:ZLD-4A
  • Filling nozzles:4
  • Packing speed:2400-4000bags/hour
  • Filling volume:5-3000ml(can be adjusted)
  • Air Pressure:0.5-0.7MPa
  • Air consumption:0.7m3/min
  • Marketing Type:New Product 2020
  • Supply Ability
    100 Set/Sets per Month
  • Packaging Details

    wooden case

  • Port

    shanghai port

  • Lead time:Quantity(sets)1 – 10>10Lead time (days)45To be negotiated

More optional features

  • Caps feeder to feed caps to ZLD-4A automatic spout pouch filling and capping machine
  • Whole machine made of stainless steel
  • Air clean system
  • Open dust cover door detector to keep production safe
  • CIP system fit for ZLD-4A
  • Conveyor belt to transport finished pouches
  • Printing machine to print date or lot numbers
  • Air compressor to supply compressed air for ZLD-4A running
  • Stainless steel pump to feed product to ZLD-4A automaic
  • More spare parts
  • Nitrogen generator to supply nitrogen for ZLD-4A



  • Detailed user’s manual
  • Detailed video of showing machine installation and operation
  • Detailed pictures of showing how to adjust machine’s speed, how to adjust filling volume, how to adjust strength of vibrating, how to adjust strength of capping, how to maintance
  • After sale response time less than 6 hours
  • ……
  • Factory and manufacturer directly sales with competive price
  • More than 8 years experience of design, manufacturing
  • Touch screen in English and Chinese languages
  • Two emergency stop buttons to keep production safe
  • Detections: no pouch no filling, no cap stop, vibrator run automatic
  • Dust cover, ultraviolet sterilization lamp
  • Professional designers and workers to serve you
  • This machine with a strict inspection before out of storage
  • Food grade 304# stainless steel is used in our spout pouch filling capping machine

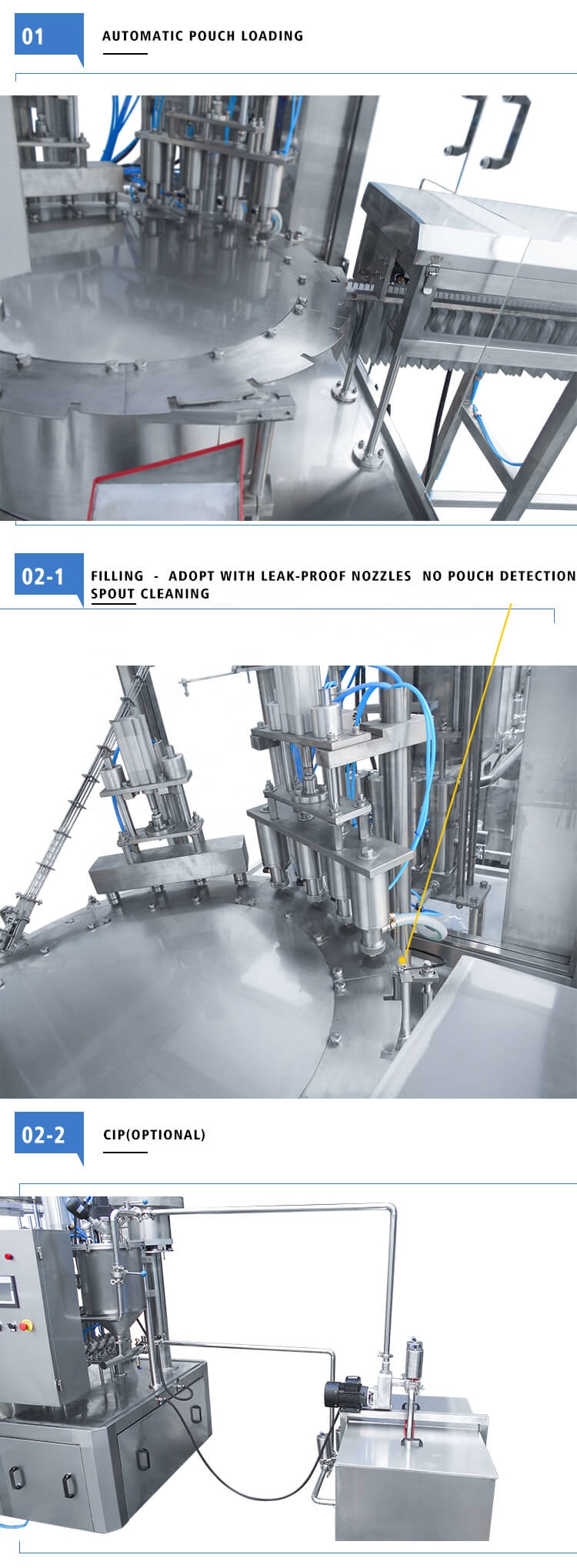

  • Pouch loading
  • Printing  –  printing machine required, optional feature
  • No pouch detection
  • Vacuum – optional feature
  • Filling  –  adopt with leak-proof nozzles
  • Nitrogen flushing – optional feature
  • Spout cleaning

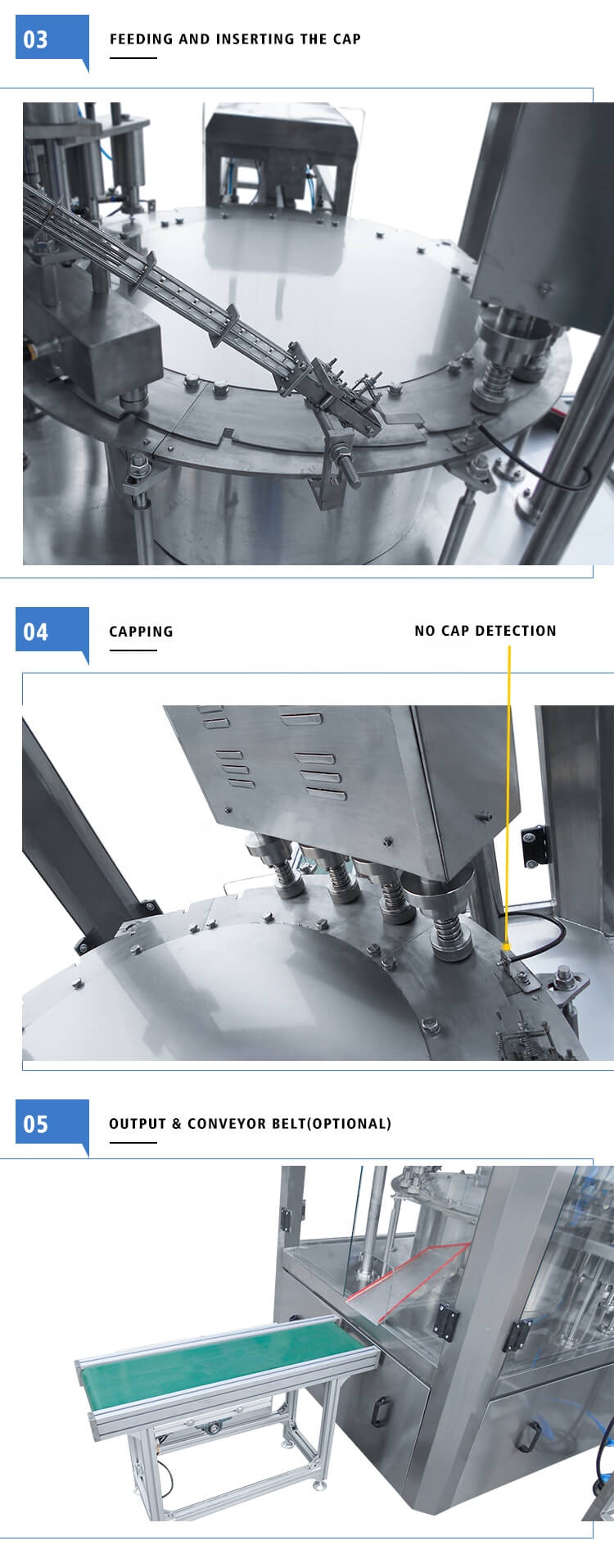

  • Feeding and inserting cap
  • No cap detection
  • Capping
  • Discharging
  • Transport – conveyor belt required, optional feature


Related Products


Product Description


Shanghai machinery automatic piston filling machine for high viscous liquid

Filling heads4
Capacity3600-4000 bags/hour
Filling volume50-500ml(customizable 1L 2L 3L)
Air pressure 0.65 m³/min



  • Widely used for a variety of products, such as jelly, milk, butter, fruit juices, paste, chemical liquid, water and so on.
  • High reliability, convenient operation, wide applicability, high performance.
  • Import control elements, SchneiderMitsubishiOrmonSiemens, making the system more stable and reliable.
  • Contact us to get more details.

 Shanghai machinery automatic piston filling machine for high viscous liquid

Shanghai machinery automatic piston filling machine for high viscous liquid
Shanghai machinery automatic piston filling machine for high viscous liquidShanghai machinery automatic piston filling machine for high viscous liquid
