Automatic liquid stand-up bag spout pouch filling and & capping cap-screwing sealing equipment packing machine

by Shanghai Joygoal Food Machinery Co., Ltd.

$11,400.00

  • Condition:New
  • Type:Filling Machine
  • Machinery Capacity:Other, 12000BPH, 2000BPH
  • Applicable Industries:Hotels, Manufacturing Plant, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, stand-up pouch filling and capping machine
  • Showroom Location:None
  • Application:Beverage, Chemical, Food, spout pouch filling capping machine
  • Packaging Type:Pouch, Stand-up Pouch, Bags, Other, spout pouch, doypack bags, etc.
  • Packaging Material:Paper, Plastic, Metal, Other, spout pouch filling capping machine
  • Automatic Grade:Automatic
  • Driven Type:Pneumatic
  • Voltage:220V/380V
  • Place of Origin:Shanghai, China
  • Brand Name:JOYGOAL
  • Dimension(L*W*H):3900*2300*2230 MM
  • Weight:1200 KG
  • Warranty:1 Year
  • Key Selling Points:High-accuracy
  • Filling Material:Other, Milk, Water, Oil, Juice, liquid and paste
  • Filling Accuracy:99%
  • Machinery Test Report:Not Available
  • Video outgoing-inspection:Provided
  • Warranty of core components:1 Year
  • Core Components:Motor, Other, PLC, Gear, Gearbox, Engine
  • Name:spout pouch filling and capping machine
  • Model:ZLD-2A
  • Packing speed:1200-2000 bags/hour
  • Filling volume:50-500ml;1-3L
  • Air pressure:0.5-0.7 Mpa
  • Air comsuption:0.7m3/min
  • Filling nozzles:2
  • After Warranty Service:Field maintenance and repair service
  • After-sales Service Provided:Online support
  • Certification:CE
  • Marketing Type:New Product 2020
  • Supply Ability
    50 Set/Sets per Month Factory doypack spouted packing machine
  • Packaging Details

    wooden case

  • Port

    Shanghai

  • Lead time:Quantity(sets)1 – 1>1Lead time (days)45To be negotiated

More optional features

  • Caps feeder to feed caps to ZLD-2A automatic spout pouch filling and capping machine
  • Whole machine made of stainless steel
  • Air clean system
  • Open dust cover door detector to keep production safe
  • CIP system fit for ZLD-2A
  • Conveyor belt to transport finished pouches
  • Printing machine to print date or lot numbers
  • Air compressor to supply compressed air for ZLD-2A running
  • Stainless steel pump to feed product to ZLD-2A automaic
  • More spare parts
  • Nitrogen generator to supply nitrogen for ZLD-2A



Support

  • Detailed user’s manual
  • Detailed video of showing machine installation and operation
  • Detailed pictures of showing how to adjust machine’s speed, how to adjust filling volume, how to adjust strength of vibrating, how to adjust strength of capping, how to maintance
  • After sale response time less than 6 hours
  • ……
  • Factory and manufacturer directly sales with competive price
  • More than 8 years experience of design, manufacturing
  • Touch screen in English and Chinese languages
  • Two emergency stop buttons to keep production safe
  • Detections: no pouch no filling, no cap stop, vibrator run automatic
  • Dust cover, ultraviolet sterilization lamp
  • Professional designers and workers to serve you
  • This machine with a strict inspection before out of storage
  • Food grade 304# stainless steel is used in our spout pouch filling capping machine



  • Pouch loading
  • Printing  –  printing machine required, optional feature
  • No pouch detection
  • Vacuum – optional feature
  • Filling  –  adopt with leak-proof nozzles
  • Nitrogen flushing – optional feature
  • Spout cleaning
  • Feeding and inserting cap
  • No cap detection
  • Capping
  • Discharging

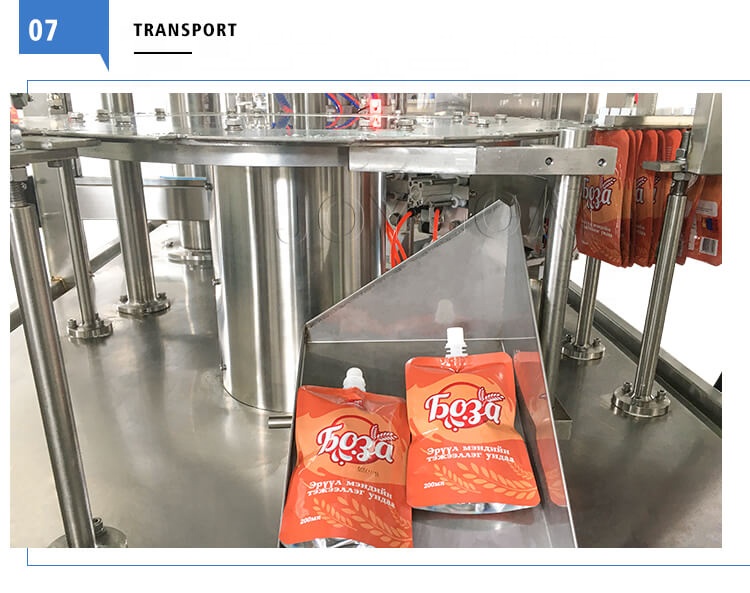

  • Transport – conveyor belt required, optional feature



Related Products



Product Description

AUTOMATIC SPOUT POUCH FILLING CAPPING MACHINEAutomatic liquid stand-up bag spout pouch filling and & capping cap-screwing sealing equipment packing machine with price

ModelZLD-2A
Filling heads2
Capacity1200-2000 bags/hour
Filling volume50-500ml(customizable 1L 2L 3L)
Error±2%
Power380V/HZ
Air pressure 0.7 m³/min
Weight

1200kg


  • Widely used for a variety of products, such as jelly, milk, butter, fruit juices, paste, chemical liquid, water and so on.
  • High reliability, convenient operation, wide applicability, high performance.
  • Import control elements, SchneiderMitsubishiOrmonSiemens, making the system more stable and reliable.
  • Contact us to get more details.
